Citizen - Swiss Lathe - Serie D

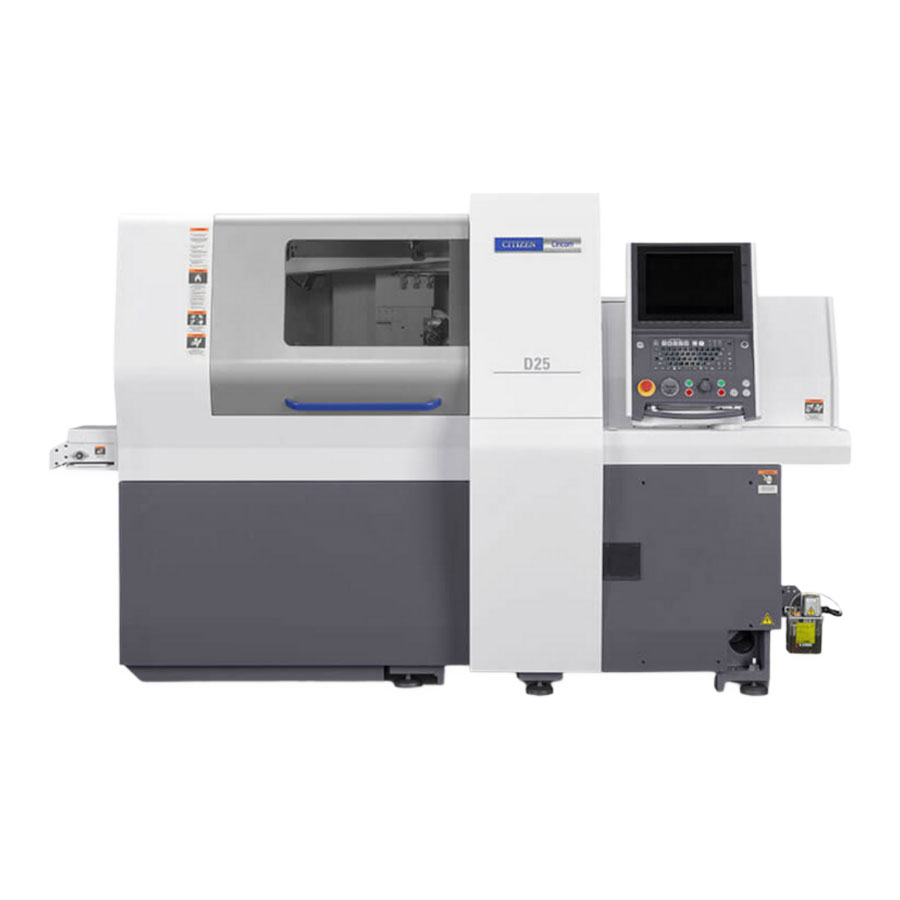

D25
We present the latest development from Citizen, the D25, equipped with double-gang tool stations and B-axis. The double-gang arrangement allows for short cycle times for high productivity with a low cost per piece. The large number of tools, both for the main spindle and the sub-spindle, provides cost-effective production of complex parts.
Z2 axis in the second gang for counterbalance cutting opposite the first gang and for simultaneous roughing and finishing machining. The rear tool holder (Y3 axis) accommodates modular radial or frontal fixed/rotating tools and is equipped with an adjustable rotating tool for frontal, radial, or angular machining. The B axis is located in the first block for complex machining on main spindles and sub-spindles.
- Next-generation CNC system with touch screen and QWERTY keyboard. Prepared for IoT (Internet of Things)
- Easy setup with graphical on-screen instructions
- 3 Y axes, 3 Z axes
- B axis for front-back machining
- Independently adjustable angle rotary tools to the sub-spindle
- Power and speed: 5.5 kW and 10,000 rpm
- With/without guide bushing - switchable operation
We support you through every stage of your project:
We work hand in hand with your team, providing you with:
- Assistance in identifying your needs
- Creating customized technological and financial solutions within 48 hours
- Logistics and implementation control at your company
- Training and coaching to maximize your team's productivity and profitability
- Technical support from our internationally certified engineers
